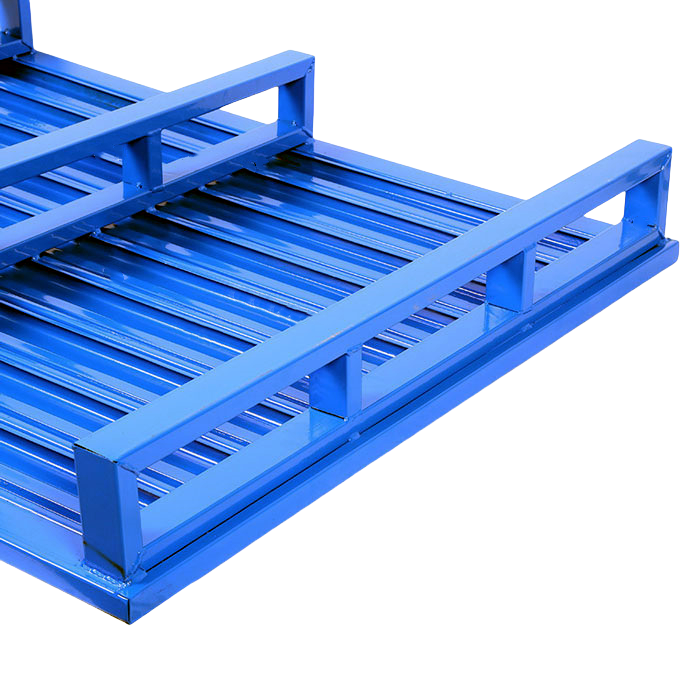

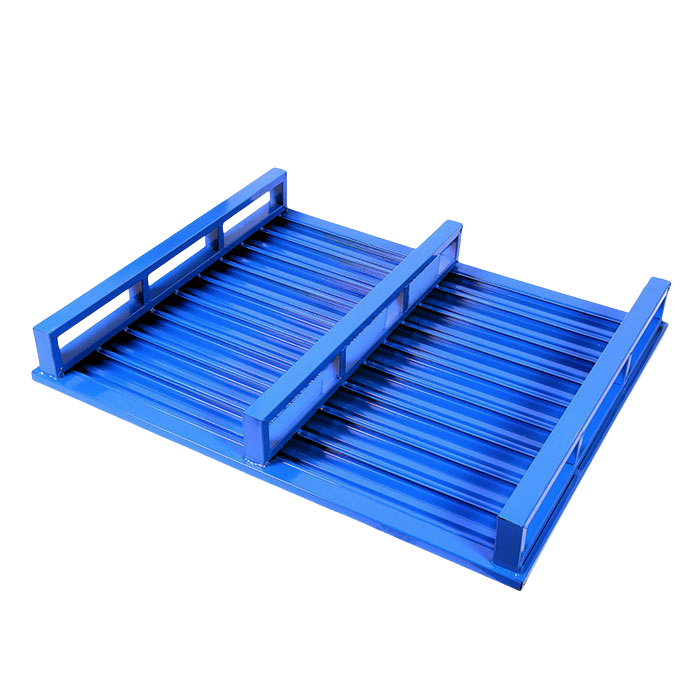

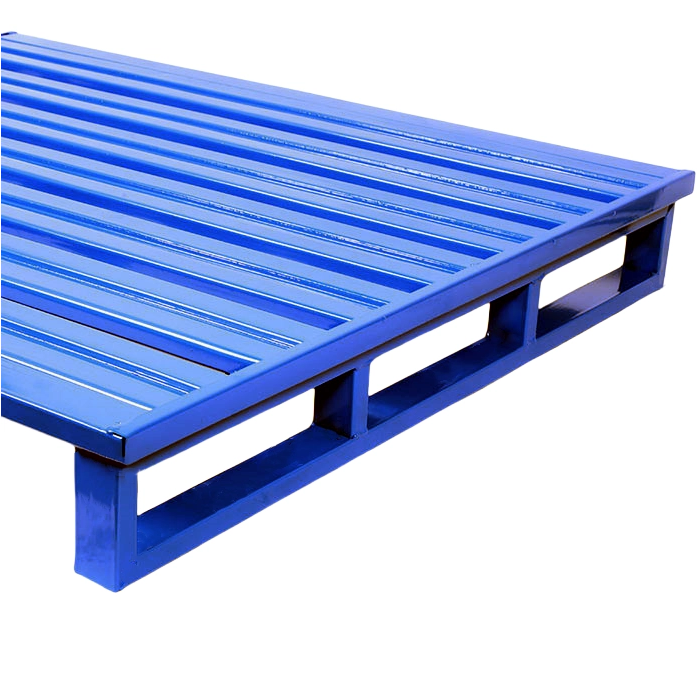

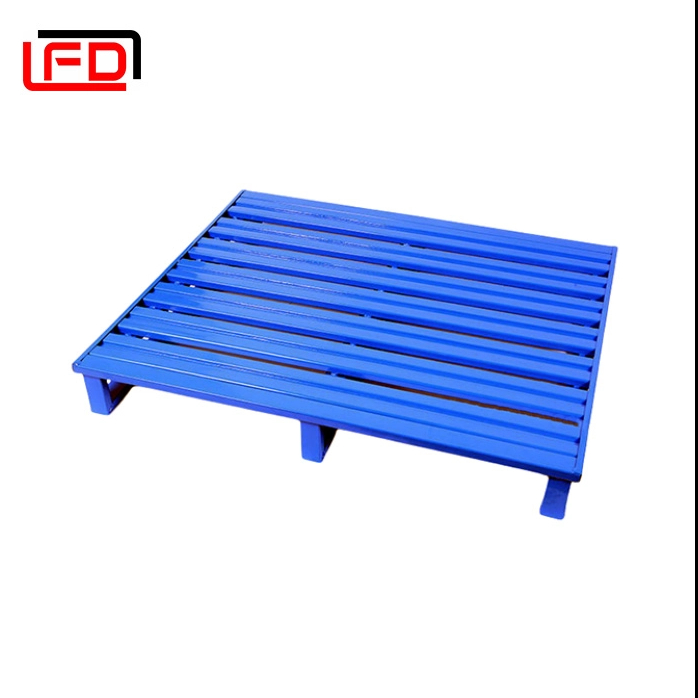

The steel pallet consists of a supporting beam, upper panel and protecting steel angle.The supporting tube is of high- quality carbon steel tube , 4-way for forklift and 2-way for hand pallet truck.
C type steel of the panel makes the pallet skidproof and stronger. This pallet has a high bearing ratio, up to 60 times of its own weight.
The number of panels can be increased or decreased according to customer's request
The panel can be added to the bottom of the pallet according to actual loading products
The pallet loading with goods can be stacked if the goods are without fear of pressure and with unitized packaging
The pallet can be used on selective rack, trough type rack and gravity type rack. Both forklifts and hand pallet truck are applicative
To load scattered goods, pallet collar can be installed to the pallet
| Style | Feet Height(mm) | Dia. Of Feet | Size(mm) | Loading Capacity(kg)
| Weight(kg)
| Volume(cbm) |
| Center to Center |
SPT01 | 105 | 165 | 1370 | 1005 | 300 | 1000 | 33 | HDG |
| SPT02 | 105 | 165 | 1850 | 1005 | 300 | 1000 | 40 | HDG
|
SPT03
| 110 | 180 | 1370 | 1000 | 300 | 1000 | 32.5 | HDG
|
SPT04
| 110
| 180
| 1770 | 1000 | 300 | 1000 | 51.5 | HDG
|
SPT05
| 110
| 180
| 2050 | 1015 | 450 | 1000 | 45 | HDG
|
SPT06
| 110
| 180
| 1870 | 1000 | 300 | 1000 | 59 | HDG
|
SPT07
| 100 |
| 1100 | 1000 | 140 | 1000 | 26 | Painting |
Heavy Machinery: Steel pallets can support the weight of heavy machinery parts and components during transport and storage.
Assembly Lines: Used in production lines to move heavy or bulky items from one stage of assembly to another.
Storage: Ideal for stacking heavy goods in warehouses, maximizing vertical space usage.
Distribution Centers: Used to move large quantities of goods, ensuring stability and safety during transit.
Car Parts: Transport and store car parts such as engines, transmissions, and other heavy components.
Assembly Plants: Efficiently move parts and assemblies within the plant.
Building Materials: Transport heavy materials like bricks, steel beams, and concrete blocks.
Tools and Equipment: Store and move heavy construction tools and machinery.
Aircraft Parts: Transport and store heavy and oversized aircraft parts.
Logistics: Efficiently move materials and parts within aerospace manufacturing and maintenance facilities.
Bulk Goods: Ideal for handling large and heavy bulk items in retail warehouses.
Fulfillment Centers: Used in e-commerce fulfillment centers for moving and storing heavy products.
